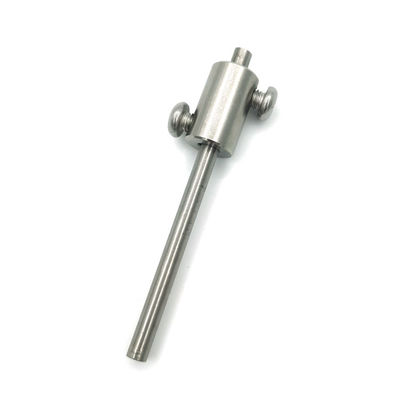

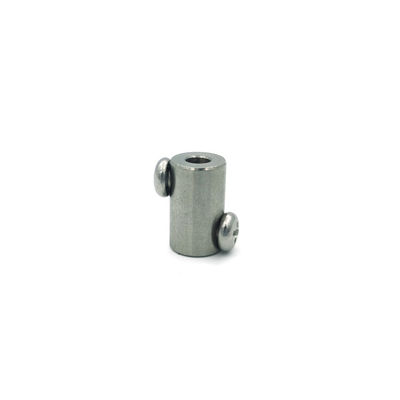

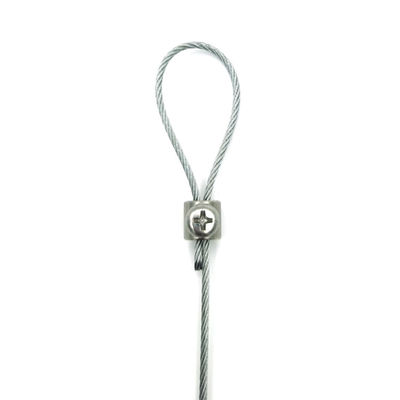

Small Clip Wire Rope Grips Cable Gripper Wire Steel Suspension

Company Profile

We focus on the production and design of suspension system accessories.

Products include cable gripper,ceiling accessories,art display hanging kit,wire rope and accessories.

Our products can make various suspension solutions,including lighting installation system,sign suspension,HVAC cable suspension system,and other industrial applications.

Our customers include NVC Lighting Holding Limted,Opple Lighting,TCL,etc.,providing one-stop solution services for lighting.

You need customized products,and we can do it for you.For example,shape design,configuration and color can be specified if you have special requirements.

Feature of Cable Clip Wire Rope Clamp Cable Gripper

Cable gripper, (also called cable slider or cable fastener):
Metallic component, cylindrical, external dimensions according to Annex 2, capable of gripping a wire rope of 7 x 7 wires via 3 sphere locking system. Grips cable when sliding in one direction and releases it on opposite direction. After cable is inserted provides no access to locking mechanism and no possibility of tampering with its internals. Used as component in metallic security seal.
Consists of:
1) Body:
holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable.
2) Locking spheres:
3 sphere arranged in a triangular pattern that will hold the cable in place via pressure.
3) Wedge or bush:
Transfers the pressure of the spring to the spheres.
4) Spring:
Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant.
5) Lid:
To close the assembly when it is ready. It is closed by pressing (min 10 kgf ) so the assembly cannot be dismantled easily without damaging it. The lid is colored in black or other distinctive color so the gripper to prevent inverted usage.

Technical Parameters of Cable Clip Wire Rope Clamp Cable Gripper

Advantages of Cable Clip Wire Rope Clamp Cable Gripper

We will replied your problems within 12 hours.

We accept OEM and ODM orders.

The real photos of the products can be provided for you before shipment.

Your business relationship with us will be confidential to any third party.

Good after-sale service offered, please get back if you got question.

About the application of Cable Clip Wire Rope Clamp Cable Gripper

Suspension Kits with adjustable cable grippers are the perfect alternative to the traditional threaded rod solution, they are used extensively throughout the building, architectural, lighting, and agricultural sectors.

With our many Cable Gripper styles you can hang anything: Drop Ceilings, Light Fixture Pendants, Signs, Displays, Shelves, Picture Frames, and more.

Custom order information of Cable Clip Wire Rope Clamp Cable Gripper

To start your order first, carefully review the product and service information on our drawing and quotation, if you don't see exactly what you want, please contact us regarding availability, size, and quantity requirements for your project. Make sure you have decided on exactly what you need.
Then, consult us on all your questions regarding
our products, components, and parts, because many of the components can be easily confused.
Contact us to receive a quote for your project.
After placing an order, the customer receives via fax or e-mail a Customer Order Acknowledgment, which indicates in detail descriptions of items and pricing. Orders will not be processed without WIRE ROPE MATE HARDWARE receiving a signed copy of said Customer Order Acknowledgment. Make sure to review and initial all areas. All changes to your orders of stock merchandise can be modified no later than 24 hours after receiving your order. We will call or fax you immediately should something change concerning your order.

Packaging Information of Cable Clip Wire Rope Clamp Cable Gripper

500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.

International Shipping Around the World

All the Cable Clip Wire Rope Clamp Cable Gripper can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

FAQ:

What is the payment terms?

For small order, we require 100% T/T or PayPal in advance. For bulk order, we require 50% in advance, balance against B/L or before shipment.

What is a gripper?

A Cable Gripper is an adjustable fastener that automatically grips and locks to any position on an aircraft cable using an internal, spring-loaded 3-ball gripping mechanism. This allows the Gripper to move freely up the cable but not down unless the mechanism is released.

How to place an order?

We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks.
