Brass Pull-to-Release Cable Gripper for 1.0-1.5 mm Wire Rope with Chrome Finish

Brass Pull-to-Release Cable Gripper for 1.0-1.5 mm Wire Rope with Chrome Finish

Detail produk:

Tempat asal: Dikompresi Atau Digulung
Nama merek: W-mate
Sertifikasi: ISO9001/RoHS
Nomor model: 260917-02

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 200
Harga: US$0.53-0.48
Syarat-syarat pembayaran: T/T
Harga terbaik Kontak

Informasi Detail
Bahan: Kuningan (tubuh) Permukaan Selesai: Berlapis krom

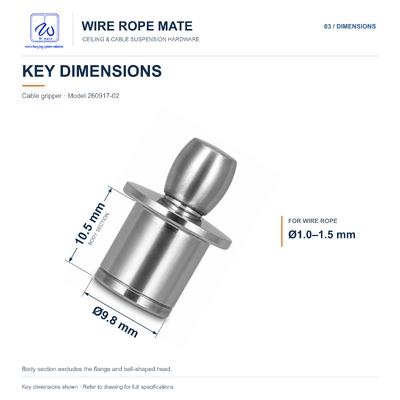

Diameter tubuh: 9,8 mm Diameter flensa: 14mm
Tinggi badan berbentuk silinder: 10,5 mm Diameter kepala tarik: 7mm
Tinggi kepala tarik: 7mm Diameter tali kawat: 1,0-1,5mm
Menyoroti:

Brass cable gripper for 1.0-1.5 mm wire rope

,

Pull-to-release cable gripper with chrome finish

,

Brass wire rope gripper for cable suspension kit

Deskripsi Produk

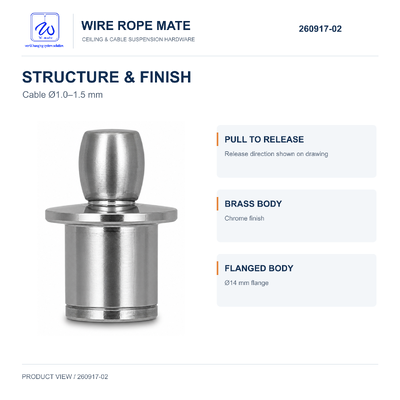

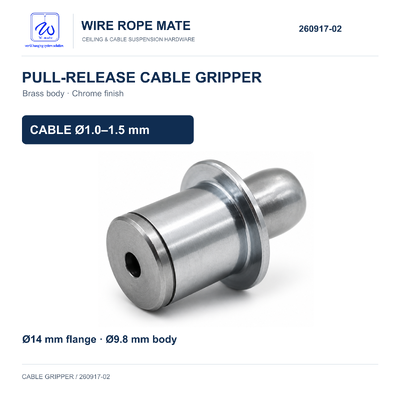

[260917-02] Product Overview The 260917-02 is a brass cable gripper for 1.0-1.5 mm wire rope. It has a chrome-plated finish, a 9.8 mm cylindrical body diameter and a 14 mm flange diameter. The drawing shows wire entry through the cylindrical-body end and a pull-to-release head at the opposite end. Check the mating geometry and operating instructions for the intended assembly. Key Features For 1.0-1.5 mm wire rope, providing a defined cable size range for component selection.

Label:

Kit Gantung Suspensi Kawat

kit kabel lampu gantung

kit gantung lampu

Ingin Tahu lebih detail tentang produk ini
Brass Pull-to-Release Cable Gripper for 1.0-1.5 mm Wire Rope with Chrome Finish bisakah Anda mengirimkan saya lebih banyak detail seperti jenis, ukuran, jumlah, bahan, dll.
Terima kasih!
Menunggu jawaban Anda.
